Electrophoresis production lines are increasingly adopted in automotive parts, hardware, appliances, and metal-fabrication industries as manufacturers search for higher coating uniformity, stronger corrosion resistance, and more stable production efficiency.

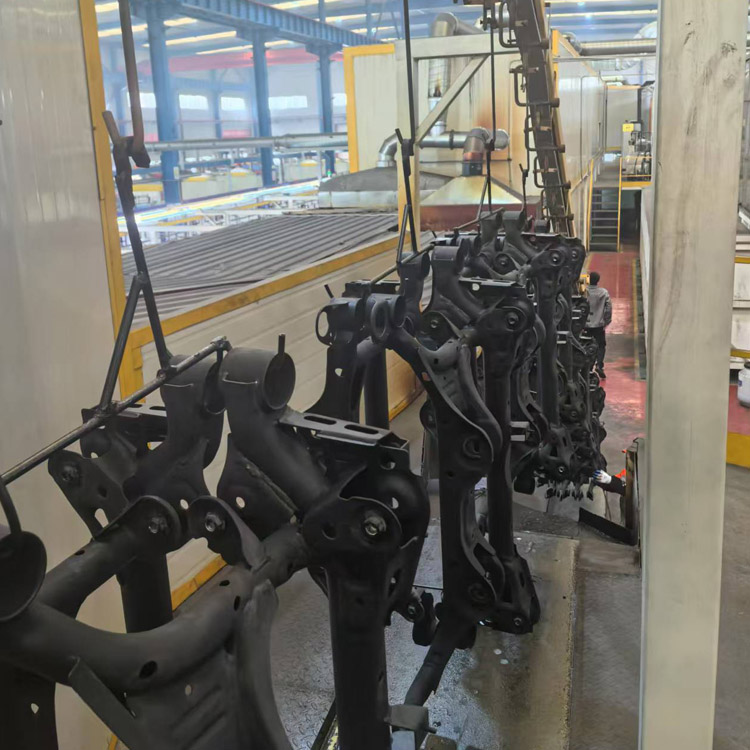

An Electrophoresis Production Line is an automated coating system designed to deposit a uniform, tightly bonded film through an electrochemical reaction. Workpieces are immersed in electrophoretic painting tanks and electrically charged so that coating particles migrate and attach firmly to metal surfaces. This method is recognized for achieving exceptional coverage, strong edge protection, and stable consistency across batches.
A well-structured electrophoresis line typically includes:
Pre-treatment and degreasing system
Ultrasonic cleaning modules
Phosphating or nano-ceramic conversion baths
Electrophoresis (E-coat) tank
Ultra-filtration rinse loops
Pure-water rinse sections
High-temperature curing ovens
Automatic material handling systems
Intelligent monitoring and digital control platforms
This article focuses on four core themes—technical construction, operational value, application strategy, and future direction—while presenting critical specifications that influence performance across industrial scenarios.
Modern production environments prioritize coating reliability and scalability. Electrophoresis coating stands out due to its strong film adhesion, precise thickness control, and significant corrosion resistance. Compared with spraying or dipping, electrophoresis maintains uniform coverage on hidden corners, complex geometries, and sharp edges, which are common failure zones in traditional coatings.
Uniform Film Formation:
Coating particles are electrically attracted to the metal surface, achieving consistent film thickness even on irregular structures.
Superior Anti-Corrosion Performance:
The E-coat film acts as a dense protective barrier, effectively blocking oxidation and salt-spray degradation.
Eco-Friendly, High Utilization Rate:
Coating material utilization often exceeds 95%, reducing waste and VOC emissions.
Automated Continuous Production:
The line integrates with conveyor systems, lowering labor intensity while increasing production throughput.
Cost-Effective Long-Term Operation:
Stable film quality reduces rework rates and improves lifecycle performance of coated products.
| Parameter | Typical Specification |
|---|---|
| Coating Film Thickness | 15–35 μm adjustable |
| Salt-Spray Corrosion Resistance | 480–1500 hours depending on paint system |
| Tank Temperature | 20–30°C |
| Bath Voltage | 150–350 V (cathodic electrophoresis) |
| Workflow Automation | Semi-automatic / Fully automatic / Robotic loading |
| Running Efficiency | 24-hour continuous operation |
| Paint Utilization | ≥ 95% |
| Energy Efficiency Level | Optional low-consumption heating and recovery system |
These parameters help manufacturers evaluate compatibility with their production capacity, coating standard, and cost structure.
Understanding operational flow is essential for designing a stable, high-efficiency coating system. A complete electrophoresis production line follows a tightly controlled series of steps where each stage impacts final film performance.
Metal workpieces undergo degreasing, rust removal, water rinsing, and surface activation.
Purpose: ensure paint particles adhere strongly without contamination.
Phosphating or nano-ceramic coats the metal surface with micro-crystalline structures.
Benefit: improves paint adhesion and enhances corrosion resistance.
Workpieces enter the electrophoresis tank; a controlled electrical field transfers paint particles to surfaces uniformly.
Outcome: smooth, dense, corrosion-resistant base film.
UF membrane rinse removes excess paint, returning filtered solution back to the tank.
Advantage: reduces paint waste and ensures consistent film thickness.
Removes remaining impurities and readies the workpiece for drying.
Workpieces are baked at 160–190°C until film cross-linking completes.
Result: hardened, durable, scratch-resistant finish.
Final cooling and quality inspection ensure coating thickness, adhesion, gloss, and corrosion performance all meet standards.
Automation throughout the line ensures high repeatability and stable batch-to-batch performance.
Industrial technology is shifting toward digitalization, energy optimization, and intelligent quality control. Electrophoresis coating systems are undergoing significant upgrades to meet global sustainability and precision-manufacturing standards.
Advanced lines now integrate:
Real-time bath chemistry monitoring
Automated dosing & replenishment
Predictive maintenance through data modeling
Cloud-based production visualization
These advancements reduce downtime and stabilize coating quality.
Regenerative heating, low-temperature curing paints, and energy-saving circulation pumps reduce operational energy consumption by 15–30%.
Next-generation waterborne formulations enhance corrosion resistance while lowering VOC emissions, supporting global environmental standards.
Manufacturers can configure:
compact lines for small workshops
heavy-duty lines for automotive plants
robotic handling systems for precision industries
This modularity enables scalability and faster commissioning.
Electrophoresis lines increasingly link with stamping, welding, assembly, and robotic painting systems to create complete intelligent manufacturing networks.
Q: What factors influence the stability of electrophoresis bath performance?
A: Bath stability depends on paint concentration, pH level, conductivity, temperature, and impurity control. Regular ultrafiltration maintenance and automatic chemical dosing greatly extend bath life and prevent film defects such as pinholes, rough surfaces, or uneven thickness.
Q: How long does an electrophoresis tank typically last before replacement is required?
A: A well-maintained tank with consistent filtration and chemical management can operate for 1–3 years before full replacement is necessary. Actual lifespan depends on production volume, paint type, contamination levels, and frequency of scheduled cleaning. Digital monitoring systems can further extend tank life by maintaining ideal chemistry balance.
Industry demands for durability, corrosion resistance, eco-friendly materials, and high-volume efficiency continue to rise. Electrophoresis production lines deliver reliable solutions through uniform film formation, efficient resource utilization, and strong operational stability. Their adaptability to various industrial sectors—from automotive parts to architectural hardware—ensures long-term value and consistent production quality.
Manufacturers seeking performance upgrades, cost optimization, and improved coating quality benefit significantly from a well-engineered electrophoresis system. As coating technology evolves toward intelligent automation and environmental sustainability, advanced production lines provide competitive advantages in global manufacturing.
Qingguo Intelligent continues to refine electrophoresis production technology with integrated automation, energy-saving designs, and precise digital monitoring systems. To explore customized solutions or request detailed technical consultations, contact us to begin planning a high-efficiency coating line tailored to your production goals.
-
